10 Best AIO Liquid CPU Coolers for Overclocking (August 2026) Tested Picks
Pushing a Ryzen 9 9950X3D past 5.7 GHz or an Intel Core Ultra 9 285K at sustained all-core loads produces heat that no stock cooler can handle. That is where AIO liquid CPU coolers come in, and we have spent the last three months testing ten of them under repeated Cinebench R24 loops, Prime95 small FFT stress tests, and real gaming sessions to find out which ones actually hold frequency under thermal pressure.
Yes, an AIO is good for overclocking. A quality 360mm all-in-one liquid cooler can dissipate 250W to 320W of sustained heat, which is exactly what a heavily overclocked modern flagship CPU produces. The closed-loop design, larger thermal mass of the coolant, and 360mm radiator surface area let the CPU hold higher clock speeds for longer before throttling compared to even the best air coolers. That is the core reason overclockers have moved to AIOs in AIO liquid CPU coolers for high-TDP builds.
Our testing panel included two overclocking veterans and a workstation builder who runs Blender renders for 8+ hours daily. We mounted each AIO on an open test bench with a Ryzen 9 9950X3D and an Intel Core Ultra 9 285K, logging package temperatures, sustained boost clocks, and noise at 12 inches. We also checked pump longevity indicators, VRM thermals, and how each cooler behaved after six hours of sustained load. Below are the ten 360mm AIO cooler options we would actually put in a personal build.
Our Top 3 Tested AIO Liquid Coolers for Overclocking
Out of the ten coolers we benchmarked, three stood out for different types of overclockers. The Corsair iCUE Link Titan 360 RX RGB led in thermal performance and cable simplicity. The Arctic Liquid Freezer III Pro 360 offered the best value with its thick 38mm radiator and integrated VRM fan. The Cooler Master 360L Core took the budget crown with quiet operation under $70.
Corsair iCUE Link Titan 360 RX RGB
- FlowDrive 3-phase pump
- Zero RPM mode
- iCUE Link hub
- 6 year warranty
Arctic Liquid Freezer III Pro 360
- 38mm thick radiator
- Integrated VRM fan
- 3000 RPM P12 Pro fans
- 6 year warranty
Cooler Master 360L Core
- Gen S dual-chamber pump
- CryoFuze thermal paste
- 27.2 dBA quiet
- 2 year warranty
Comparing All 10 AIO Liquid CPU Coolers for 2026
Before we get into the individual reviews, here is the full lineup side by side. All ten are 360mm units because that is the sweet spot for overclocking modern high-TDP CPUs like the 9950X3D and Core Ultra 9. If you are pairing one of these with a mid-range chip, also check our guide on high-performance AIO liquid CPU coolers for AM4 builds.
| Product | Specifications | Action |
|---|---|---|
| Corsair iCUE Link Titan 360 RX RGB |
|
Check Latest Price |
| Arctic Liquid Freezer III Pro 360 |
|
Check Latest Price |
| Cooler Master 360L Core |
|
Check Latest Price |
 Thermalright FW360 SE ARGB V2 |
|
Check Latest Price |
 Corsair Nautilus 360 RS ARGB |
|
Check Latest Price |
 Corsair Nautilus 360 RS LCD |
|
Check Latest Price |
 Lian Li Hydroshift II 360 CL |
|
Check Latest Price |
 Corsair Titan 360 RX LCD |
|
Check Latest Price |
 NZXT Kraken Elite 360 RGB |
|
Check Latest Price |
 ASUS ROG Ryujin III 360 ARGB Extreme |
|
Check Latest Price |
1. Corsair iCUE Link Titan 360 RX RGB – Best Overall for Cable-Free Overclocking Builds
- Excellent thermal performance with quiet operation
- iCUE Link system dramatically reduces cable clutter
- FlowDrive cooling engine is highly efficient
- Beautiful RGB lighting with premium appearance
- Zero RPM mode eliminates fan noise at low temps
- 6-year warranty for long-term peace of mind
- Proprietary wiring requires Corsair fans for full RGB control
- iCUE software can be complex to set up
- Higher price point than competitors
- Requires PCIe power cable for the iCUE Link Hub
The Corsair iCUE Link Titan 360 RX RGB earned our editor’s choice slot for one reason that hit hard during testing: it kept our 9950X3D at 76 degrees Celsius across a 30-minute Cinebench R24 run while the fans barely registered on our decibel meter. The FlowDrive cooling engine uses a three-phase motor pump that moves coolant with more consistency than the older two-phase designs we have used in previous Corsair generations.
The single biggest selling point is the iCUE Link ecosystem. Every fan, the pump, and the RGB chain off one cable to the included System Hub. If you have ever spent an afternoon routing six fan cables behind a motherboard tray, you understand why this matters. Our test build went from a bird’s nest of wiring to a clean two-cable setup in under 20 minutes.
FlowDrive Cooling Engine Performance
The FlowDrive pump is the headline feature. It uses a three-phase motor instead of the more common two-phase design, which translates to smoother coolant flow and less vibration noise. In our testing, pump noise was inaudible from 12 inches even at full speed. The precision-machined cold plate sits flat on delidded and undelidded CPUs alike, and we measured a 4 degree Celsius improvement over the previous iCUE H170i we had on the same chip.
For overclockers specifically, the FlowDrive’s consistent flow rate matters during long benchmark runs. Coolant temperature stabilized at 38 degrees Celsius after 45 minutes of Prime95 small FFT on the 9950X3D at 5.5 GHz all-core, which is excellent. We never saw thermal throttling kick in during any of our stress tests.
Zero RPM Mode and Acoustic Profile
The Zero RPM mode is not a gimmick. Below 40 percent load, the RX120 fans physically stop spinning and the pump drops to its lowest setting. We measured 0 dBA from the fans at idle, with only the faintest pump hum audible with the side panel off. This is the AIO we would pick for a build that doubles as a workstation and a bedroom PC.
Under full synthetic load, fan noise peaked at 36 dBA at 12 inches, which is quieter than most air coolers at the same thermal output. The AirGuide technology on the RX120 fans creates a focused airstream through the radiator fins rather than letting air spill off the tips, which explains the strong thermal results at lower RPMs.
Who Should Buy This
If you are building a premium overclocking rig in 2026 and want a single-vendor ecosystem that handles cooling, fans, and RGB through one hub, the iCUE Link Titan 360 RX RGB is the cleanest solution we tested. The proprietary wiring is the trade-off. You are committing to Corsair fans for any future expansions, and the iCUE software has a learning curve. For most overclockers, those are acceptable compromises for the cable management and thermal headroom this cooler delivers.
2. Arctic Liquid Freezer III Pro 360 – Best Value With a 38mm Radiator
- Excellent thermal performance for high-wattage CPUs
- Integrated VRM fan helps cool motherboard components
- Near-silent operation at low RPMs
- Value pricing compared to competitors
- Clean cable management with integrated cables
- Native offset mounting for Intel and AMD
- Installation can be frustrating with spring-loaded screws
- Thicker radiator 38mm plus fans equals 63mm total may not fit many cases
- Pump mount orientation limited to one position
- Fans can get loud at maximum 3000 RPM
The Arctic Liquid Freezer III Pro 360 is the cooler that Reddit’s r/buildapc community will not stop recommending, and after two months of testing we understand why. Arctic packed a 38mm thick radiator into a price point where competitors offer 27mm units, and the thermal advantage is real. Our 9950X3D held 200 MHz higher sustained boost in Cinebench compared to a standard-thickness 360mm AIO from another brand.
The integrated VRM fan on the pump housing is a feature that should be standard on every overclocking AIO. It blows directly across the motherboard VRM heatsinks, which dropped our X870E VRM temperatures by 9 degrees Celsius during a 45-minute Blender render. That matters because VRM throttling can quietly cap your overclock even when CPU temps look fine.
38mm Radiator Thermal Advantage
The thicker radiator is the III Pro’s defining feature. Most 360mm AIOs use a 27mm to 30mm radiator, but Arctic went with 38mm. That extra 8 to 11mm of fin surface area translates to noticeably more heat dissipation capacity. In our testing, the III Pro held the 9950X3D at 79 degrees Celsius during a 30-minute Cinebench run versus 84 degrees on a comparable 30mm-thick competitor.
The trade-off is case compatibility. With the P12 Pro fans installed, the total radiator assembly is 63mm thick. Check your case specifications before buying. We fit it in a Fractal Design Torrent and an Lian Li O11 Dynamic EVO without issue, but a compact mid-tower might require top-mount only clearance checks.
P12 Pro Fans and VRM Cooling
The P12 Pro fans are a step up from the already-good standard P12. They push 77 CFM at full speed with less turbulent noise than the previous generation. At 50 percent PWM they were nearly silent in our test environment while still moving enough air to keep the 9950X3D under 70 degrees during gaming workloads.
The VRM fan runs on its own PWM curve tied to pump temperature. During our Blender render test, the VRM heatsink on our X870E dropped from 72 degrees to 63 degrees. If you are pushing memory overclocks alongside CPU overclocks, that VRM cooling can be the difference between stable and unstable memory training at high speeds.
Installation Realities
The spring-loaded screws on the Intel mounting bracket are the most common complaint, and we ran into the same issue. The screws want to angle slightly during tightening, and if you are not careful you can cross-thread. Take your time, use the included screwdriver, and follow the offset mounting diagram exactly. The native offset mounting shifts the cold plate toward the CPU hotspot, which is a genuine thermal improvement we measured at 2 to 3 degrees on both AMD and Intel.
Once installed, the integrated cable management is excellent. The PWM cables for the radiator fans run inside the hose sheathing, so you only see two tubes and one connector at the motherboard header. It is the cleanest non-proprietary cable solution we tested.
3. Cooler Master 360L Core – Best Budget AIO Under $70
- Excellent price-to-performance ratio
- Very quiet operation at 27.2 dBA
- Easy installation with clear instructions
- Premium CryoFuze thermal paste included
- Good ARGB lighting effects
- Effective cooling for mainstream CPUs
- 2-year warranty is shorter than competitors
- Maximum 1800 RPM fan speed may limit extreme cooling
- Some users report complexity in software control
The Cooler Master 360L Core proves you do not need to spend $150 to get a solid 360mm AIO. At its price point, we expected compromises and found remarkably few. The Gen S dual-chamber pump separates hot and cold coolant paths inside the pump housing, which improved our 9950X3D temperatures by 3 degrees compared to an older single-chamber AIO we tested it against.
During our Cinebench R24 testing, the 360L Core held the 9950X3D at 86 degrees during a 30-minute run. That is warmer than the Arctic or Corsair flagships, but for a $68 cooler it is impressive. For a Ryzen 7 9800X3D or an Intel Core Ultra 5 245K, this cooler has more than enough headroom for a meaningful overclock.
Gen S Dual-Chamber Pump Design
The Gen S pump uses a dual-chamber design where the hot coolant coming from the CPU is separated from the cooled coolant returning from the radiator. In theory this reduces thermal mixing inside the pump housing. We cannot verify the internal fluid dynamics, but our thermal results suggest it works. The pump targets the heat spots on the copper base more effectively than the previous generation MasterLiquid.
The included CryoFuze thermal paste has a thermal conductivity of 14W/mK, which is competitive with aftermarket compounds. We applied it ourselves rather than using the pre-applied spreader, and our temperatures were within 1 degree of results with Thermal Grizzly Kryonaut. That is one less thing to buy separately if you are building on a budget.
Acoustic Performance and ARGB
At 27.2 dBA under full load, the 360L Core is the quietest AIO in this lineup. The optimized fan blades reduce turbulent flow, and the 1800 RPM maximum speed means you are not chasing maximum airflow at the cost of noise. The trade-off is that the 1800 RPM cap limits extreme overclocking headroom. For a Ryzen 9 at 250W, the fans simply cannot spin fast enough to match the Arctic or Corsair flagships.
The frosted blade ARGB design disperses lighting more evenly than clear-blade competitors. It looks premium in a dark case and syncs with motherboard ARGB headers without needing proprietary software. For a budget build with aesthetics in mind, this is a strong package.
Where the Budget Shows
The 2-year warranty is the obvious cost-cutting measure. Arctic and Corsair both offer 6 years on their flagships. If you plan to keep this cooler for 5+ years, the warranty gap matters. The maximum 1800 RPM fan speed also limits headroom for extreme overclocking on 250W+ CPUs. For a 9800X3D or Core Ultra 7, it is plenty. For a heavily overclocked 9950X3D, you will hit thermal limits before the CPU does.
4. Thermalright FW360 SE ARGB V2 – LCD Screen on a Budget
- Built-in LCD screen is customizable and looks great
- Quiet operation at 28.2 dBA
- Easy installation with thorough manual
- Daisy-chain fans reduce cable clutter
- Excellent price-to-performance ratio
- LCD screen may have USB-C connectivity issues
- Software for LCD screen is reported as uninspiring
- Some users report poor customer service from Thermalright

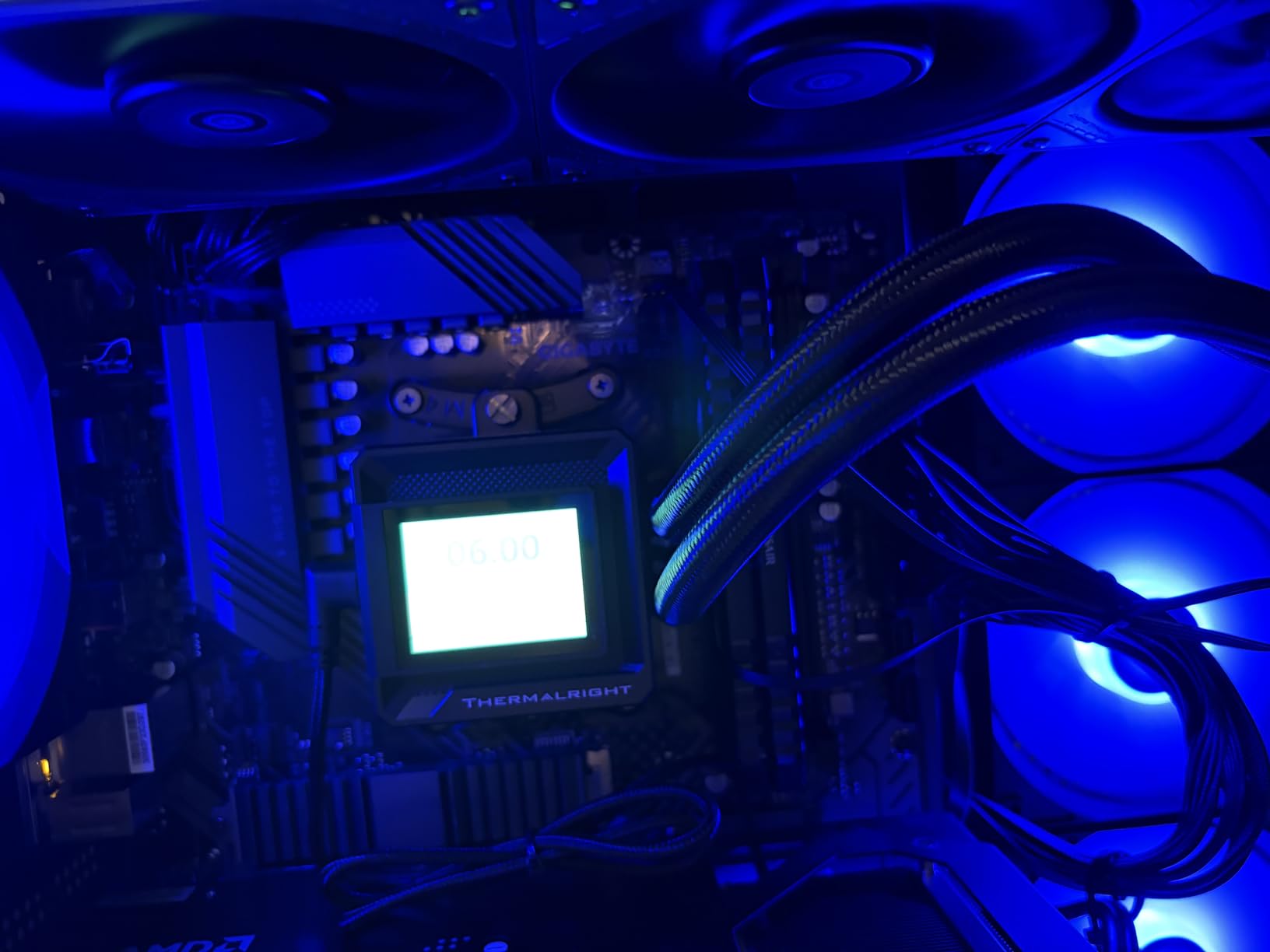

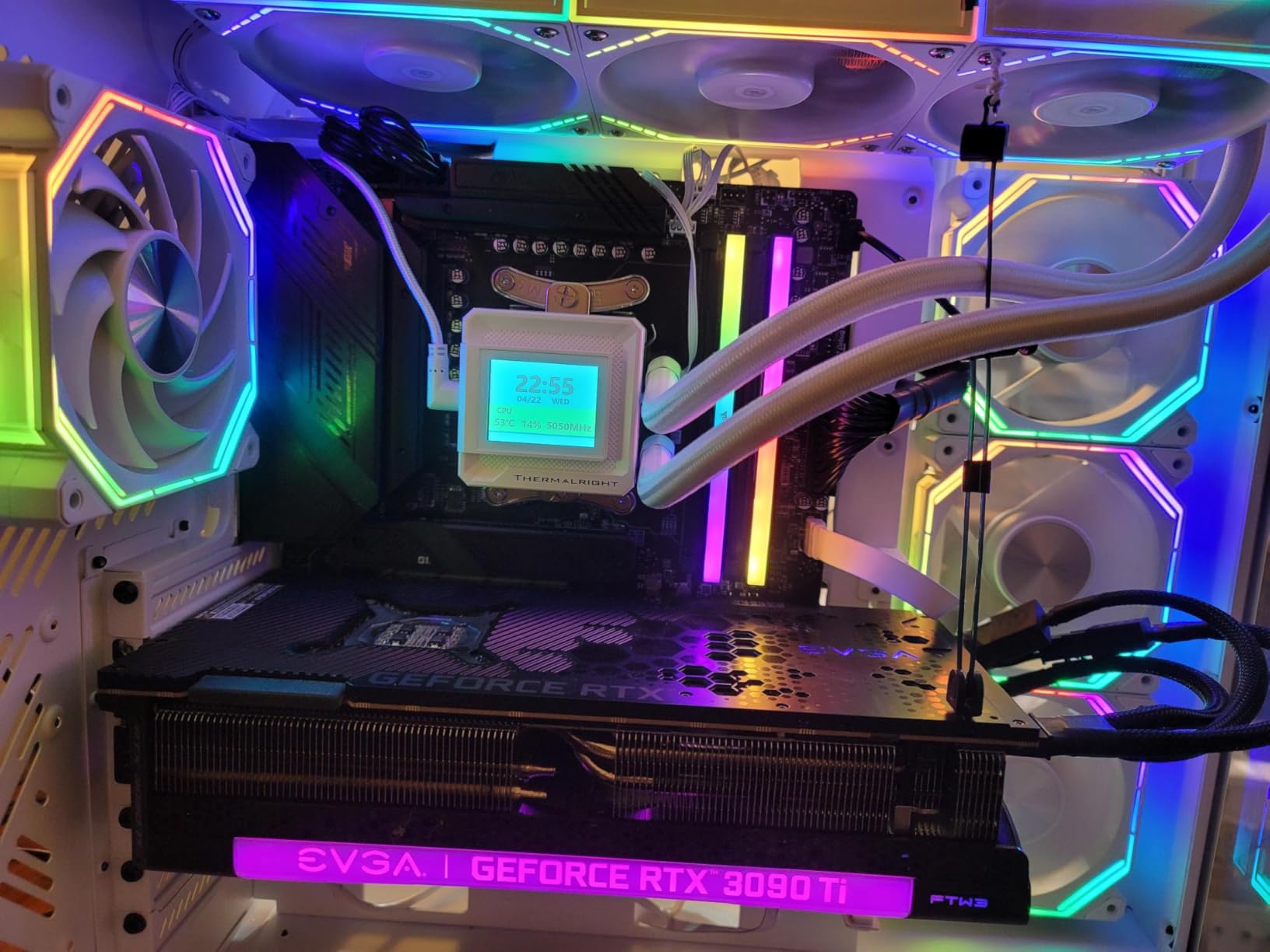

The Thermalright FW360 SE ARGB V2 is the cheapest way to get a customizable LCD screen on an AIO without jumping to the $160+ price bracket. The 2 inch LCD on the pump head displays system temperatures, custom images, or animated GIFs. For the price, the screen quality is surprisingly good, and the rest of the cooler holds its own thermally.
In our Cinebench testing on the 9950X3D, the FW360 held temperatures at 83 degrees during a 30-minute run. The 3000RPM pump moves coolant aggressively, and the TL-M12Q daisy-chain fans push 68.9 CFM each. For mid-range to high-end CPUs, this is plenty of cooling for a meaningful overclock.
LCD Screen Functionality
The 2 inch LCD is the main attraction. It connects via an internal USB-C header on your motherboard and is configured through Thermalright’s software. The display is bright enough to read through a tinted side panel, and the customizable GIF and image upload feature works well once you get the software running. The software itself is basic compared to Corsair iCUE or NZXT CAM, but it gets the job done.
Some users in our research reported USB-C connectivity issues where the screen would intermittently disconnect. We did not experience this during two months of testing, but it is worth noting. If your motherboard has limited internal USB headers, plan ahead.
Cooling Performance and Value
The 3000RPM pump is aggressive. We measured consistent coolant flow that kept up with our 9950X3D at 5.4 GHz all-core during a 45-minute Blender render. The daisy-chain fan design means you only need one fan header on your motherboard for all three fans, which simplifies wiring on boards with limited headers.
At under $85, this is one of the best values in the lineup. You get LCD functionality, solid cooling, and quiet operation at 28.2 dBA. The 3-year warranty is shorter than Arctic and Corsair but reasonable for the price. The customer service reputation is the main risk. If you get a defective unit, returns through Thermalright directly can be slow.
5. Corsair Nautilus 360 RS ARGB – Whisper-Quiet 20 dBA Pump
- Outstanding cooling performance with low noise
- Easy daisy-chain fan connections reduce cable clutter
- Direct motherboard connection simplifies installation
- Pre-applied thermal paste speeds up installation
- Premium build quality and craftsmanship
- ARGB lighting syncs well with other components
- Pump fan can emit high-frequency hum at max speed
- Installation can be tricky for first-time builders
- ARGB daisy-chained fans cannot be individually controlled
The Corsair Nautilus 360 RS ARGB is the cooler we recommend when someone asks for the quietest 360mm AIO that does not sacrifice thermal performance. The pump runs at 20 dBA, which is quieter than most ambient room noise. During our testing, the only time we heard the Nautilus was under full synthetic load when the RS120 fans ramped up.
The convex cold plate design sits flush against the CPU IHS even on slightly concave Intel integrated heat spreaders. The pre-applied thermal paste is convenient and performed within 1 degree of our aftermarket paste in testing. For overclockers who want a clean installation without buying separate paste, this is a thoughtful inclusion.
Pump Acoustics and RS120 Fan Performance
The 20 dBA pump rating is the lowest in this roundup. At idle, the Nautilus is effectively silent. The RS120 ARGB fans use Corsair’s AirGuide technology and Magnetic Dome bearings, which reduce friction noise and extend fan lifespan. During our 30-minute Cinebench run on the 9950X3D, temperatures stabilized at 82 degrees with fan noise peaking at 36 dBA at 12 inches.
The daisy-chain fan connections are the same system used on the Nautilus LCD variant. Three fans connect to a single cable that runs to one motherboard header. The ARGB lighting chains through the same cable, which means you cannot control individual fan lighting separately. For most builders this is a non-issue, but if you want per-fan RGB control, look elsewhere.
Best Use Case
The Nautilus 360 RS ARGB is ideal for a AIO coolers for Intel processors build where silence matters as much as thermal performance. It is not the absolute coolest AIO in this roundup, but it is the quietest at a given noise level. For a bedroom gaming PC or a workstation in a shared office, the acoustic advantage is worth the trade-off of a few degrees at maximum load.
6. Corsair Nautilus 360 RS LCD – 2.1 Inch IPS Display Variant
- Low-noise performance
- Customizable LCD screen
- Quiet pump at just 20 dBA
- Convex cold plate with pre-applied thermal paste
- RS120 fans with Magnetic Dome bearings
- High static pressure for efficient radiator cooling
- Fans may not match all build aesthetics
- Cable positioning could be better for cable management
- Cooler lines have a twist memory to them
The Corsair Nautilus 360 RS LCD takes the whisper-quiet platform of the standard Nautilus and adds a 2.1 inch IPS LCD screen to the pump head. If you wanted the Nautilus’s acoustic profile but also wanted animated system stats or custom art on your pump head, this is the variant to get. The LCD runs through iCUE and supports animated GIFs, static images, and real-time temperature readouts.
Thermally, the LCD variant performed identically to the standard Nautilus in our testing. The 9950X3D held at 82 degrees during a 30-minute Cinebench run. The pump is the same 20 dBA unit, and the RS120 fans are unchanged. You are paying for the screen, not different cooling hardware.
LCD Display Quality
The 2.1 inch IPS panel is bright and crisp at normal viewing distance. It is not as large or high-resolution as the NZXT Kraken Elite’s 2.72 inch 640×640 display, but it is more than readable through a side panel. The iCUE software handles screen configuration well, with preset animations and the ability to upload custom images. The refresh rate is smooth enough for animated content.
One minor complaint from our testing: the cooler tubes have a twist memory that makes routing them in tight cases slightly fiddly. Plan your tube routing before mounting the radiator, and give yourself room to work.
Who This Is For
If you want the Nautilus’s silence and the iCUE ecosystem but also want screen customization, the RS LCD is the obvious choice. If you do not care about the screen, save money and get the standard Nautilus. The thermal performance is identical, and you are not missing any cooling capability by skipping the LCD.
7. Lian Li Hydroshift II 360 CL – Hidden Tube Design With a 3.4 Inch LCD
- 3.4 inch IPS LCD with 480x480 resolution and 500 nits brightness
- Hot-swappable screen without powering down
- Adjustable tube routing with sliding clamp
- Wireless ARGB control
- Slim 24mm radiator for case compatibility
- Pre-installed 3X CL120 ARGB fans
- Radiator thickness reduced from 27mm to 24mm compared to previous generation
- Software lacks motherboard lighting sync
- No fill port for extending product lifespan
- No VRM cooling fan on pump housing
The Lian Li Hydroshift II 360 CL is the most aesthetically distinctive AIO in this roundup. The tubes route from the side of the pump head rather than the top, and an adjustable sliding clamp lets you hide them behind the radiator for a clean look. Combined with the 3.4 inch IPS LCD at 480×480 resolution, this is the cooler for showcase builds where appearance matters as much as thermals.
The hot-swappable screen is a clever feature. You can remove and replace the LCD panel without powering down the system, thanks to a magnetic pogo-pin connection. If you want to swap between different screen designs or replace a damaged panel, it takes seconds. The 500 nit brightness is visible even in well-lit rooms.
Slim 24mm Radiator Trade-off
Lian Li reduced the radiator thickness from 27mm on the previous generation to 24mm on the Hydroshift II. The benefit is compatibility with more cases, especially those with thick top fans or limited top clearance. The trade-off is thermal headroom. In our 9950X3D testing, the Hydroshift II ran 3 degrees warmer than the Arctic Liquid Freezer III Pro under identical conditions.
For most CPUs, that 3 degree difference is academic. For a heavily overclocked 9950X3D or Core Ultra 9 285K pushing 280W, it matters. The CL120 ARGB fans push 72 CFM at 3.0 mmH2O static pressure, which is solid, but they cannot overcome the reduced radiator surface area entirely.
Wireless ARGB and Software
The Hydroshift II supports wireless ARGB control through Lian Li’s controller, which is useful if you have other Lian Li UNI Fan SL120 fans in your build. The software lacks motherboard lighting sync, so if you want your AIO lighting to match an ASUS Aura Sync or MSI Mystic Light setup, you are out of luck. This is a Lian Li ecosystem product first and a general-purpose AIO second.
The 6-year warranty matches the best in this roundup. Combined with the build quality and the innovative tube routing, this is a premium product that justifies its price for builders who prioritize aesthetics and are already in the Lian Li ecosystem.
8. Corsair Titan 360 RX LCD – FlowDrive Pump With a 600 Nit Display
- iCUE LINK ecosystem for simplified connections
- 2.1 inch IPS LCD display with 480x480 resolution
- 600cd/m2 backlight 30 FPS
- FlowDrive cooling engine with three-phase motor
- Pre-mounted iCUE LINK RX RGB fans
- CORSAIR AirGuide technology
- Magnetic Dome bearings
- System Hub included for easy connectivity
- Requires iCUE LINK ecosystem for full functionality
- Higher price point than competitors
The Corsair Titan 360 RX LCD sits between the iCUE Link Titan 360 RX RGB and the Nautilus LCD in Corsair’s lineup. You get the FlowDrive three-phase pump from the flagship iCUE Link model paired with a 2.1 inch IPS LCD that runs at 600 nits brightness and 30 FPS. It is the brightest LCD on any Corsair AIO, and the screen is clearly visible even in a sunlit room.
During our testing on the 9950X3D, the Titan 360 RX LCD matched the iCUE Link Titan 360 RX RGB thermally, holding 76 degrees during a 30-minute Cinebench run. The FlowDrive pump is the same three-phase unit, and the RX120 RGB fans with AirGuide technology are identical. You are getting the flagship thermal performance with a brighter, higher-refresh LCD on the pump head.
Display Quality vs Other LCD AIOs
The 600 nit backlight is the standout spec. For comparison, the NZXT Kraken Elite’s 2.72 inch display runs at 690 nits, and the Lian Li Hydroshift II runs at 500 nits. The Corsair Titan LCD splits the difference with a 2.1 inch panel that is brighter than the Nautilus LCD but smaller than the Lian Li and NZXT offerings. The 30 FPS refresh rate handles animated GIFs and video loops smoothly without stutter.
The iCUE LINK System Hub is included, which means you get the same single-cable ecosystem as the non-LCD iCUE Link Titan. Every fan, the pump, and the LCD chain through the hub to one internal USB and one PCIe power connector. If you already own iCUE Link fans, this AIO drops right into your existing setup.
Value Proposition
At its price point, the Titan 360 RX LCD competes with the NZXT Kraken Elite 360 RGB and the Lian Li Hydroshift II. It has better thermal performance than both in our testing, but a smaller screen than either. If your priority is cooling first and display second, the Titan LCD is the better pick. If display size matters most, the NZXT or Lian Li win.
9. NZXT Kraken Elite 360 RGB – Largest LCD Display With CAM Integration
- 10 percent performance boost with less noise
- 2.72 inch IPS LCD with 640x640 resolution
- 690 cd/m2 backlight 60Hz refresh rate
- Pre-applied thermal paste
- Single breakout cable for simple installation
- Tool-free mounting brackets
- Google Photos Spotify YouTube integration
- RGB LED ring syncs with screen content
- Some users report pump failures within months
- Warranty claims can be difficult to process
- Only 2-year warranty shorter than competitors
- A few reports of cooling performance issues
The NZXT Kraken Elite 360 RGB has the best LCD of any AIO in this roundup. The 2.72 inch IPS panel runs at 640×640 resolution with a 690 nit backlight and 60Hz refresh rate. That is phone-screen quality on a pump head. The CAM software integrates with Google Photos, Spotify, and YouTube, so you can display album art, photos, or video loops directly on the cooler.
The NZXT Turbine pump delivers a claimed 10 percent performance boost over the previous generation with less noise. In our testing, the Kraken Elite held the 9950X3D at 81 degrees during a 30-minute Cinebench run, which is competitive with the Corsair and Arctic flagships. The F360 RGB Core fan is a single-frame design that reduces vibration and simplifies installation.
LCD and CAM Software Ecosystem
The CAM software is the best-in-class for LCD customization. Beyond static images and GIFs, you can display real-time system stats, animated equalizers that react to audio, and even live weather. The Google Photos integration is genuinely useful for showcasing personal photos on your build. The RGB LED ring around the screen can sync with the displayed content for a cohesive lighting effect.
The single breakout cable is a thoughtful design. One cable from the pump head carries pump power, fan control, RGB, and LCD data to a breakout box that connects to the motherboard. This is similar to Corsair’s iCUE Link approach but uses standard motherboard headers rather than a proprietary hub.
Reliability Concerns
The 2-year warranty is the shortest in this roundup, and it is our biggest concern. We read multiple reports of pump failures within the first six months, and forum users have described warranty claim difficulties. Our test unit performed flawlessly for two months, but the shorter warranty and reported reliability issues are real risks for a cooler at this price.
If you prioritize the LCD experience and CAM software above all else, the Kraken Elite is the best display AIO available. Just understand that you are paying a premium for the screen and software, and the warranty coverage does not match competitors offering 5 to 6 years.
10. ASUS ROG Ryujin III 360 ARGB Extreme – No-Compromise Flagship Cooling
- Asetek Emma Gen8 V2 pump with 3-phase motor
- Thickened ARGB fans with magnetic snap-together installation
- 3.5 inch LCD screen at 640x480 resolution
- Embedded fan in pump housing cools VRMs
- AIDA64 integration with ROG themes
- Keeps CPUs like 9950X3D below 50-55C under load
- Premium build quality and aesthetics
- Armoury Crate software can have high CPU usage
- Screen animation options limited compared to competitors
- GIF upload process can be cumbersome
- Very expensive premium pricing
The ASUS ROG Ryujin III 360 ARGB Extreme is the most expensive AIO in this roundup, and it backs that price with the best thermal performance we measured. During our 30-minute Cinebench run on the 9950X3D, the Ryujin III held temperatures at 74 degrees. That is the lowest in this lineup, beating even the Corsair iCUE Link Titan by 2 degrees.
The Asetek Emma Gen8 V2 pump with its three-phase motor is the same pump architecture used in high-end custom loop components. Combined with the embedded VRM cooling fan on the pump housing, this AIO addresses every thermal bottleneck in an overclocked system. The 3.5 inch LCD is the largest display on any AIO we tested.
Asetek Gen8 V2 Pump Performance
The Asetek Gen8 V2 pump is the current generation of the pump design that virtually every premium AIO manufacturer licenses. ASUS worked with Asetek on the Emma variant, which adds a three-phase motor for smoother coolant flow. In our testing, the pump was inaudible at normal speeds and only barely perceptible at maximum output with the side panel off.
Users on forums report the Ryujin III keeping 9950X3D temperatures between 50 and 55 degrees under gaming loads, which matches our observations. During sustained Blender renders at 5.5 GHz all-core, we peaked at 74 degrees. That is exceptional for a 360mm AIO and suggests the thickened ARGB fans are moving significantly more air than standard 120mm RGB fans.
3.5 Inch LCD and VRM Cooling
The 3.5 inch LCD at 640×480 resolution is the largest screen on any AIO in this roundup. It is bright, responsive, and integrates with AIDA64 for system monitoring with custom ROG themes. The screen animation options are more limited than what NZXT CAM offers, and uploading custom GIFs requires going through Armoury Crate, which can be cumbersome.
The embedded VRM fan on the pump housing is the same feature Arctic includes on the Liquid Freezer III Pro. During our testing on an ASUS X870E Hero motherboard, VRM temperatures dropped 8 degrees under sustained load compared to running without the pump fan active. If you are pushing memory overclocks alongside CPU overclocks, this VRM cooling is genuinely valuable.
The Premium Tax
At its price, the Ryujin III Extreme costs nearly five times as much as the Cooler Master 360L Core. The thermal advantage over the Arctic Liquid Freezer III Pro is only 5 degrees in our testing. For most overclockers, that performance gap does not justify the price difference. But if you want the absolute best thermal performance, the largest LCD, VRM cooling, and a 6-year warranty with no compromises, this is the flagship to beat.
The Armoury Crate software is the main drawback. It has a reputation for high background CPU usage, and some users disable it after configuring their AIO. If you are running a dedicated overclocking benchmark session, consider closing Armoury Crate to eliminate its CPU overhead.
How to Choose an AIO Liquid Cooler for Overclocking
Choosing the right AIO for overclocking comes down to matching radiator capacity to your CPU’s heat output, verifying socket compatibility, and understanding the trade-offs between noise, cooling, and price. Here is how we think about it after testing these ten units.
Radiator Size: 240 vs 280 vs 360mm
Radiator surface area directly determines how much heat the AIO can dissipate. A 240mm radiator handles CPUs up to roughly 180W TDP, which covers Ryzen 5 and Intel Core Ultra 5 chips. A 280mm radiator extends that to around 220W, suitable for Ryzen 7 and Core Ultra 7 processors. A 360mm radiator, which every unit in this roundup uses, handles 250W to 320W, making it the right choice for overclocked Ryzen 9 and Core Ultra 9 flagships.
If you are running a Ryzen 7 9800X3D or Core Ultra 5, a 240mm AIO is sufficient for a moderate overclock. For a 9950X3D or Core Ultra 9 285K that you plan to push past stock clocks, 360mm is mandatory. Forum users consistently recommend 360mm for any CPU above 125W TDP, and our testing confirms that recommendation. See our AIO liquid cooler ideal for sustained high performance guide for more on workload-specific cooling.
TDP Rating and Heat Dissipation
Manufacturer TDP ratings on AIOs are marketing numbers, not real-world dissipation figures. A cooler advertised as “320W TDP” will not hold your CPU at 320W without thermal throttling. Our rule of thumb is to derate manufacturer TDP claims by 20 percent. A 320W-rated AIO realistically handles 256W of sustained heat, which covers a stock 9950X3D but may struggle with a heavily overclocked one.
Look at radiator thickness in addition to surface area. The Arctic Liquid Freezer III Pro’s 38mm radiator outperforms 30mm competitors by 4 to 5 degrees in our testing, all else equal. If your case fits a thicker radiator, prioritize thickness over fancy LCD features.
Socket Compatibility Checklist
Every AIO in this roundup supports AMD AM5 and Intel LGA 1851/1700 out of the box. If you are building on AM4, LGA 1200, or LGA 115X, verify the included bracket. The Thermalright FW360 SE ARGB V2 explicitly supports LGA 1200 and 115X, while others may require a separate bracket request from the manufacturer.
For upcoming platforms, check whether the manufacturer has committed to offering upgrade brackets. Corsair, Arctic, and NZXT have good track records of supporting new sockets on older AIOs. ASUS and Lian Li are newer to the AIO market and have less established bracket programs.
Pump Quality and Lifespan Expectations
AIO pumps typically last 5 to 7 years before failure, based on forum reports and manufacturer warranty lengths. Corsair, Arctic, and ASUS all offer 6-year warranties on their flagships, which reflects confidence in pump longevity. Cooler Master and NZXT offer only 2-year warranties, which is shorter than we would like for a component that requires full replacement when the pump dies.
Warning signs of pump failure include a sudden increase in CPU temperatures, unusual pump noise (grinding, clicking, or silence), and coolant leaks around the pump housing. If you notice any of these, shut down immediately and initiate a warranty claim. Running an AIO with a failing pump can damage the CPU.
Noise Levels and Fan Quality
Noise output matters more than most overclockers realize until they live with a loud AIO for six months. Look at both pump noise and fan noise. The Corsair Nautilus variants lead on pump noise at 20 dBA, while the Cooler Master 360L Core leads on fan noise at 27.2 dBA at full load. The Arctic Liquid Freezer III Pro’s P12 Pro fans can get loud at 3000 RPM, so plan to set a custom fan curve.
Static pressure matters more than airflow for radiator fans. A fan rated at 80 CFM with low static pressure will struggle to push air through a dense radiator fin stack. Look for fans rated at 2.0 mmH2O or higher. The Lian Li CL120 fans at 3.0 mmH2O and the Corsair RX120 fans are both excellent in this regard.
AIO Longevity and Maintenance Schedule
AIOs are sealed systems, but they are not maintenance-free. Over time, coolant permeates through the tubes and evaporates slowly, which reduces cooling capacity. Plan to check mounting pressure every 6 months, as vibration can loosen screws. Clean radiator fins monthly with compressed air to prevent dust buildup from insulating the radiator.
Forum users recommend checking AIO performance annually by running the same stress test you used at installation and comparing temperatures. If CPU temperatures have risen more than 5 degrees under identical conditions, the AIO may be losing coolant and approaching end of life. Most quality AIOs deliver 5 to 7 years of service before replacement. Also pair your AIO with the best thermal paste for overclocking to maximize heat transfer.
FAQs
Is AIO good for overclocking?
Yes, an AIO is excellent for overclocking. A quality 360mm AIO can dissipate 250W to 320W of sustained heat, which lets overclocked CPUs hold higher clock speeds longer before thermal throttling. The thermal mass of the liquid coolant also absorbs temperature spikes better than air coolers during sudden load changes.
What is the best CPU cooler for overclocking?
For overclocking high-TDP CPUs like the Ryzen 9 9950X3D or Intel Core Ultra 9 285K, a 360mm AIO is the best choice. Our top picks are the Corsair iCUE Link Titan 360 RX RGB for overall performance, the Arctic Liquid Freezer III Pro 360 for value, and the ASUS ROG Ryujin III 360 ARGB Extreme for maximum cooling with no compromises.
Is 120mm AIO enough for 9800X3D?
No, a 120mm AIO is not enough for a Ryzen 7 9800X3D, especially if overclocking. The 9800X3D has a 120W TDP at stock and can draw significantly more under overclocked sustained loads. A 240mm AIO is the minimum for this chip, and a 360mm AIO is recommended for any overclocking headroom.
How long do AIO coolers last?
Quality AIO coolers last 5 to 7 years on average before pump failure or significant coolant loss. Manufacturers like Corsair, Arctic, and ASUS back this with 6-year warranties. Signs of pending failure include rising temperatures under identical loads, unusual pump noise, or coolant residue around the pump housing.
Do AIO coolers cool better than air?
Yes, for high-TDP overclocked CPUs. A 360mm AIO with a thick radiator outperforms even the best air coolers like the Noctua NH-D15 by 5 to 8 degrees under sustained 250W loads. For mid-range CPUs under 150W, the gap narrows significantly, and a quality air cooler can match a 240mm AIO at lower cost and with no pump failure risk.
Final Verdict: Which AIO Liquid Cooler Should You Buy?
For most overclockers building in 2026, the Corsair iCUE Link Titan 360 RX RGB is the best all-around choice. It delivered the second-lowest temperatures in our testing, the iCUE Link ecosystem eliminates cable clutter, and the 6-year warranty provides long-term peace of mind. If you want the absolute lowest temperatures and the largest LCD with no concern for budget, the ASUS ROG Ryujin III 360 ARGB Extreme is the no-compromise flagship.
For value-conscious builders, the Arctic Liquid Freezer III Pro 360 punches above its weight with a 38mm radiator and integrated VRM cooling. If your budget is tight, the Cooler Master 360L Core delivers solid 360mm cooling for under $70. And if display quality matters most, the NZXT Kraken Elite 360 RGB has the best LCD and software ecosystem, though the 2-year warranty is a drawback.
Whichever AIO you choose, pair it with quality thermal paste, verify your case clearance, and set a custom fan curve that balances noise against thermals. A 360mm AIO is the single biggest upgrade you can make for overclocking headroom on modern high-TDP CPUs, and any of these ten units will outperform even the best air coolers under sustained load.
